Timber Fence Panels & Trellis
We offer a range of fence panels from traditional featheredge to contemporary styles. All are pressure treated. We can also have bespoke panels and trellis made to order. We also offer a composite fencing system called Mode.
Enjoying browsing the images below or alternatively shop online if you are within 50 miles of our yard. If you live outside of this area please contact the office to order.
Trellis
Square Trellis
Decorative square trellis can be used as a perimeter fence or partition without spoiling the view. Can also be hung as a wall trellis.
Trellis Panel is available as a flat top, Convex (Bowed over) or Concave (Bowed under)
Available with holes measuring approximately 6″, 4″ or 3″ finish
Diamond Trellis
Our diamond trellis options are made to order and you can choose the aperture size and size of the trellis itself. Sawn finish (as in the image) and planed finish available.
Privacy Trellis- Square
Made using sawn 38 x 19mm timber battens with gaps. 60mm gaps.
The Willow- Planed
Decorative planed trellis made using redwood 45 x 19mm. 3” aperture. Pressure treated green

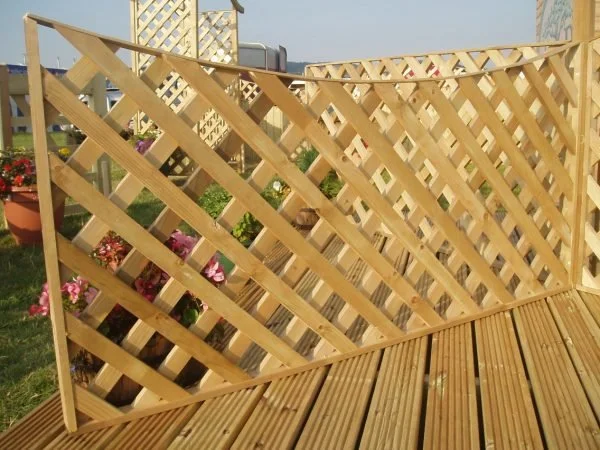

The Ash Trellis
Concaved design and made with 45 x 19mm battens. Planed finish. Apertures approx 75 x 75mm

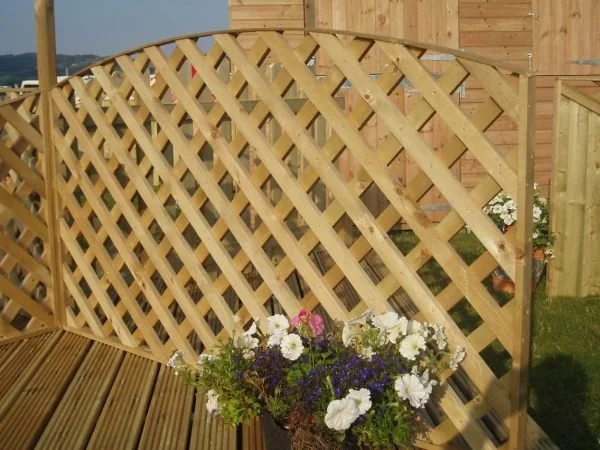

The Pine Trellis
These trellis panels are all manufactured using planed all round pressure-treated green. Joinery Redwood Softwood timber and assembled using stainless steel nails. Curved top design
Fan trellis
Perfect for those climbing plant. Available dipped gold or pressure treated.
6ft high
2ft or 3ft widths available
We can offer a huge range of bespoke trellis options including screened trellis, curved top, non standard sizes etc
Sawn Timber Panels
Made using sawn timber. Some of these panels are available with brown treatment. Brown treatment reduces the additional coats of brown stain required upon initial installation.
Facts about panels
Panels are made from timber that will show natural characterises such as knots, splits and movement. These are not considered defects. During challenging climatic conditions movements and gaps can be more evident. These traits can be shown at any time and merchants do not consider these to be a defect in the panel itself. All timber species will naturally fade to a silver colour in around 12-18 months due to exposure to UV rays and moisture. We recommend oils and stains are used to help protect your panels and maintain a ‘fresher appearance’. We also offer composite and aluminium options, see MODE
Waney Lap Panel
A traditional panel and great value for money Available pressure treated green or brown.
Bespoke sizes are available
6'w x 6'h 1828 x 1828
6'w x 5'h 1828 x 1524
6'w x 4'h 1828 x 1210
6'w x 3'h 1828 x 914
6'w x 2'h 1828 x 609
Super Waney Panel
Our super waney lap panel is pressure treated brown. This traditional panel is affordable and it provides privacy and security to your property. Pressure treated green panels are available to order.
In Stock
6ft x 3ft High
6ft x 4ft High
6ft x 5ft High
6ft x 6ft High
BEST SELLER
Egertons Panel
A new but very popular design. Manufactured using straight boards with vertical support battens. This panel is robust but affordable. A modern take on the traditional waneylap.
1.8m wide
Standard and bespoke sizes available
BEST SELLER
Featheredge Panel
1.8m wide, standard heights and bespoke sizes available
made using 75 x 22mm rails
and 125m featheredge
Top cap
Flat Top, Convex and Concaved available

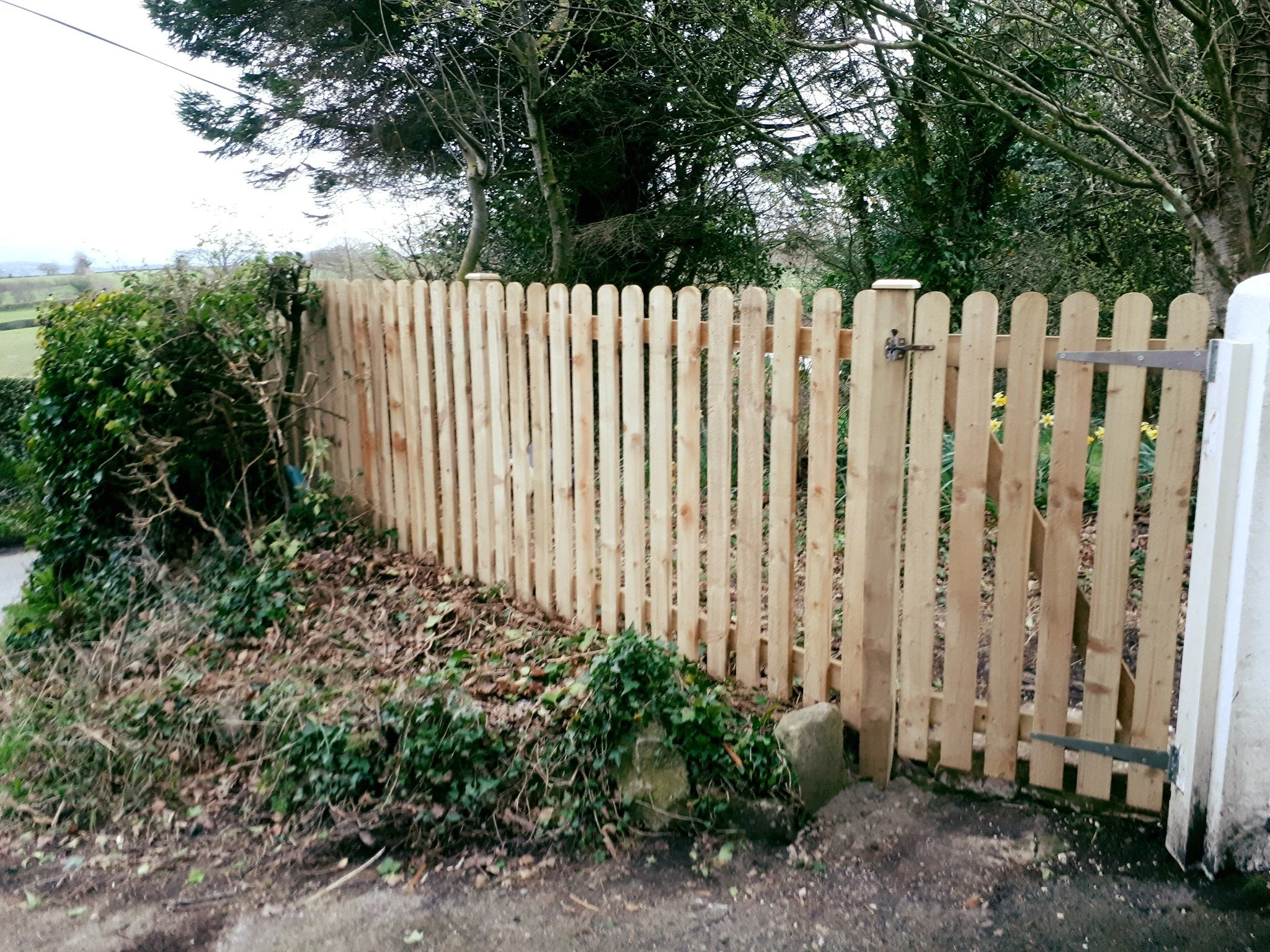

Picket panels
Planed or sawn available
Standard 3″ x 1″ pales. Planed pales are 70 x 19mm
Available with Flat top, Pointed or Round top pales (up-rights)
Concave / Convex designs also available
Made to Order

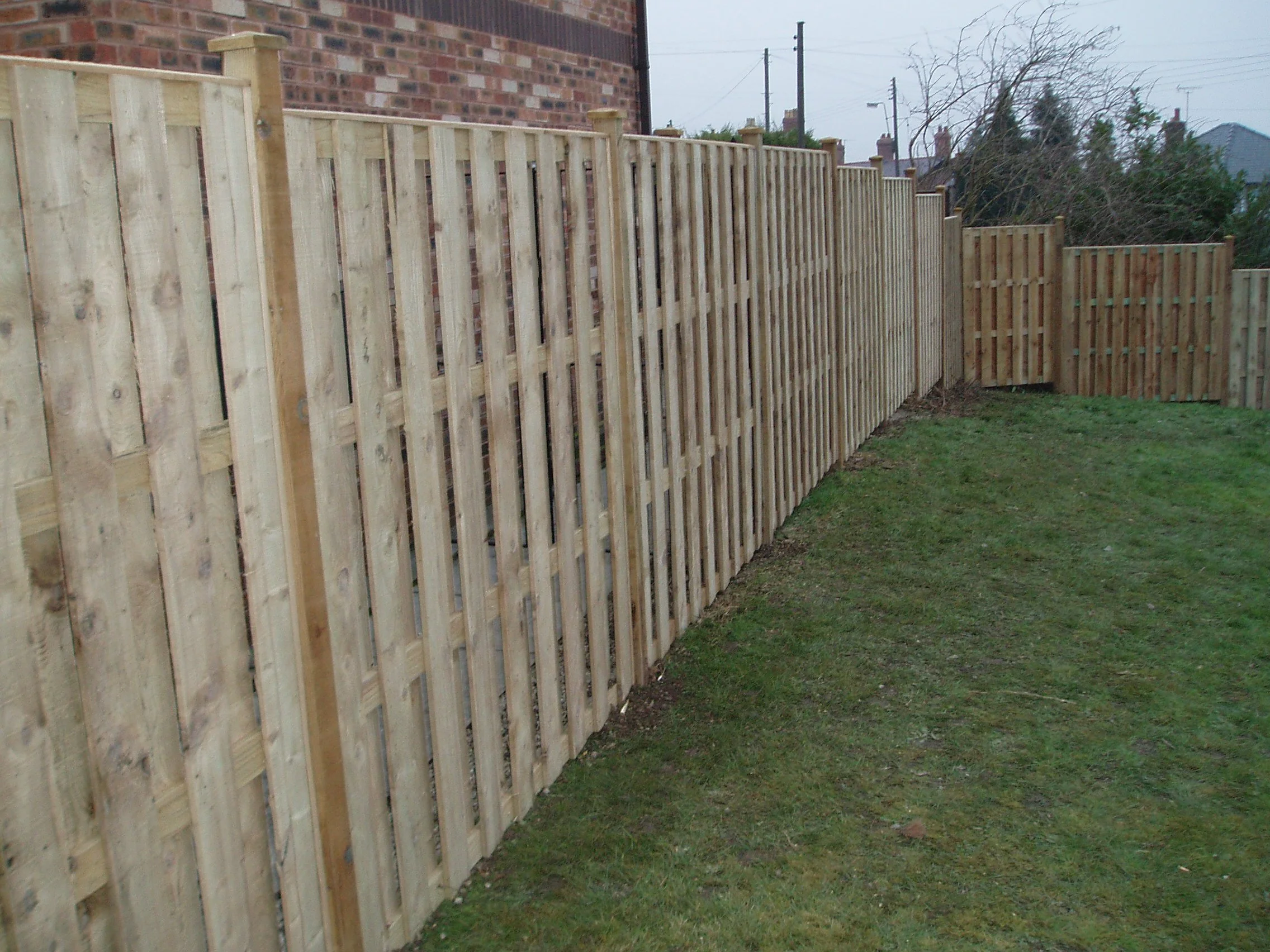

Hit & Miss Panel
A sturdy fence panel that allows wind through, perfect for windswept gardens. Appears the same from both sides
Made with sawn boards 125mm x 10mm with approx 85mm gap between the boards on each side. The opposite side will cover the gap with the boards on its side so the wind can blow through at a deflected angle.
38mm x 16mm end battens,
44mm x 16mm top cap,
back rails are 75mm x 22mm with the number depending on the height of the panel – 3 back rails on the 3ft and 4ft, 4 on the 5ft and 6ft

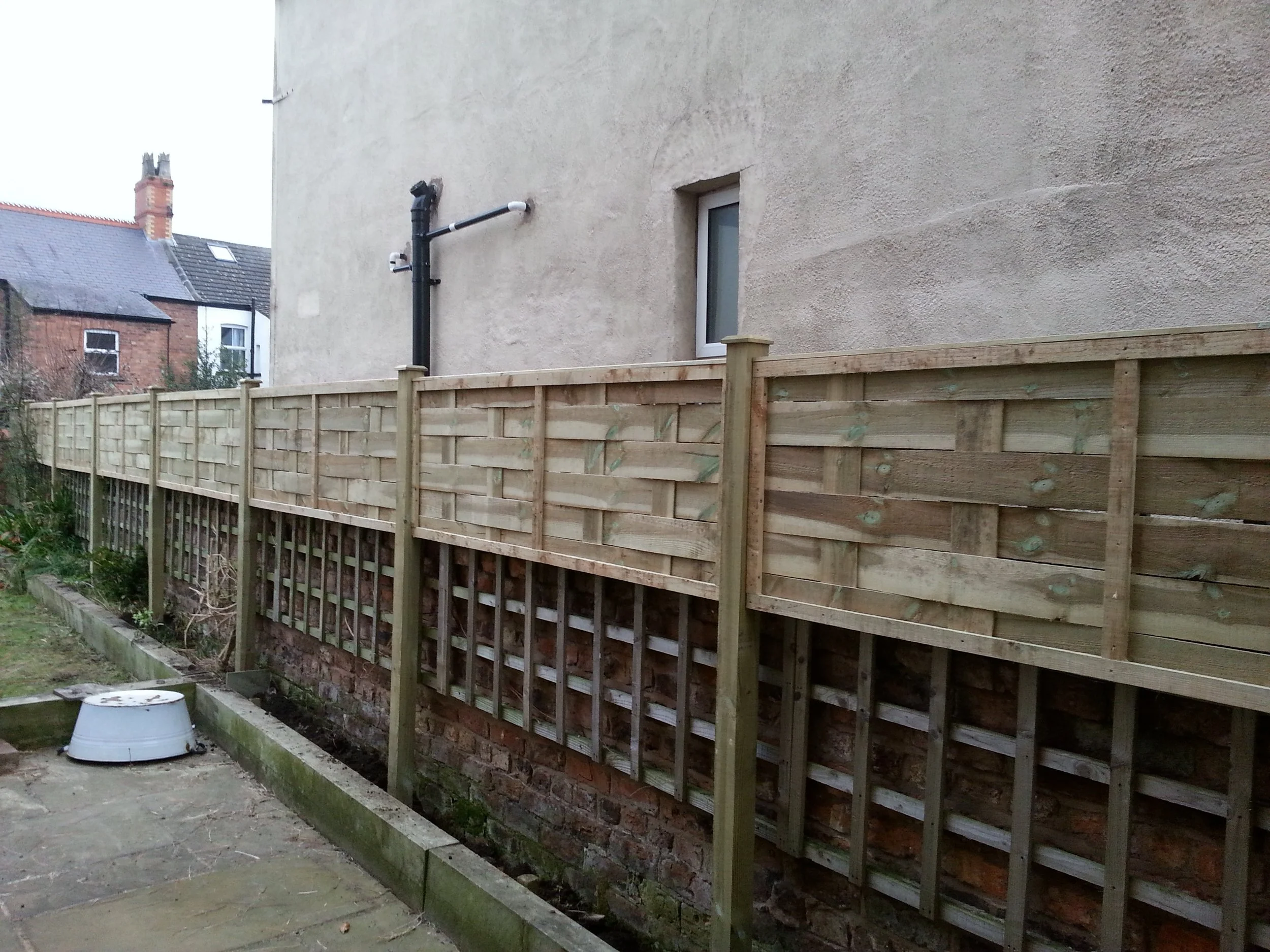

Woven Fence Panel
This more unique panel is popular for shared fence lines and for those looking for something a little different. Pressure treated timber. Great design with the added benefit of appearing almost identical from either side.
6'w x 6'h 1828 x 1828mm
6'w x 5'h 1828 x 1524mm
6'w x 4'h 1828 x 1210mm
6'w x 3'h 1828 x 914mm
6'w x 2'h 1828 x 609mm

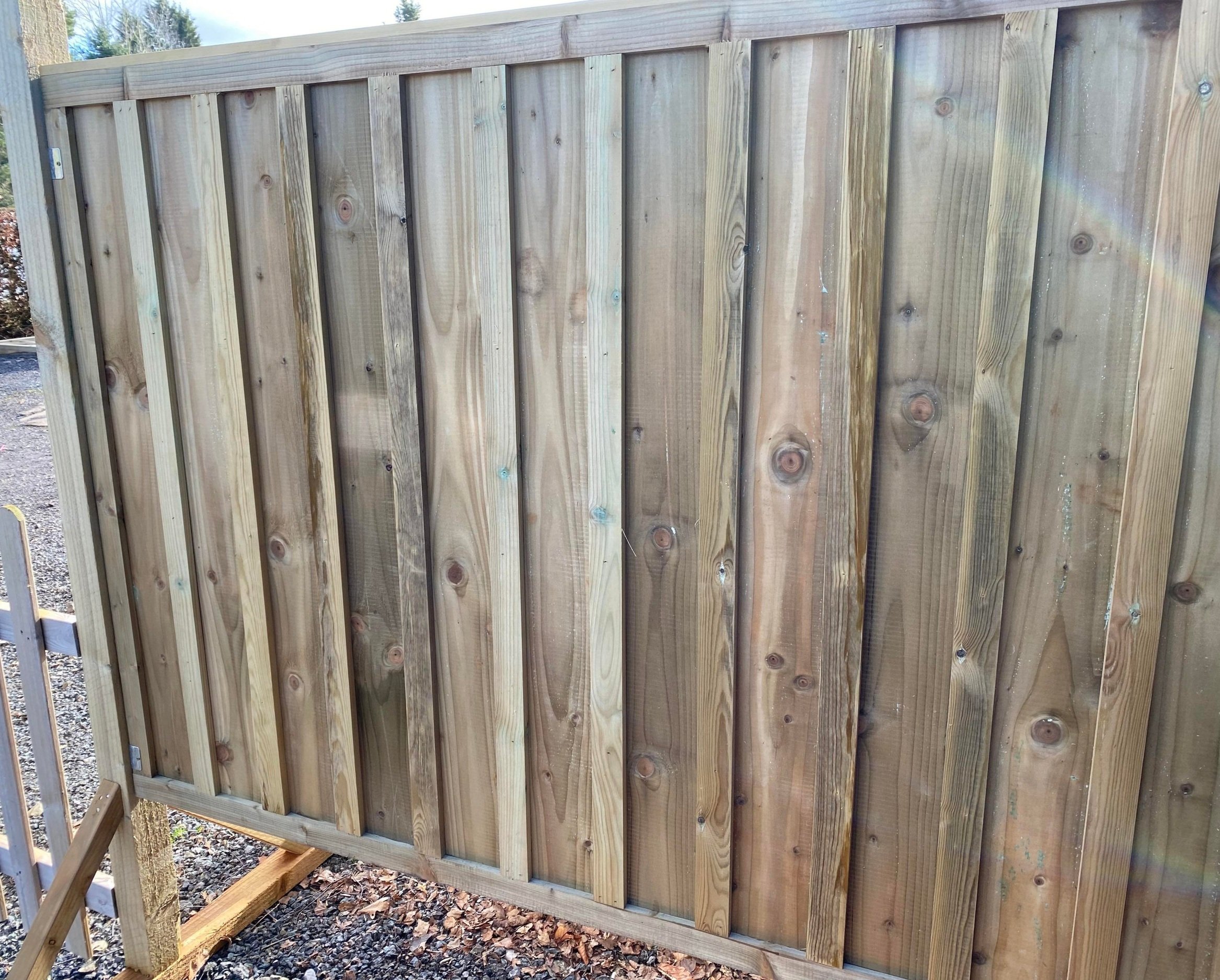

Darwin
Side by side vertical boards on one side and the joint covered by a vertical batten on the opposite side. Can be used as a cheaper alternative to Acoustic Fencing as it has some sound-proofing qualities and will deflect some direct sound waves hitting the fence panel.
1828 x 1828
1828 x 1524
1828 x 1210
1828 x 914
1828 x 609
Bespoke sizes available
Precedent Range
Made using Tongue and groove, planed finish and pressure treated. Hand crafted and made to order.

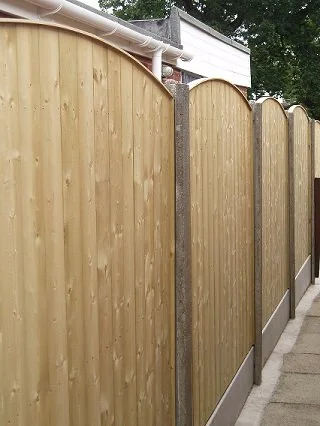

Maple Panel
Our Maple panel is perfect for those looking a a robust but stylish panel with the curved top detailing. Made from 12mm Tongue and groove and pressure treated for a longer life. The height is calculated to the top of the curve. the shoulder being approx. 6 inches lower.
6'w x 6'h 1828 x 1800
6'w x 5'h 1828 x 1500
6'w x 4'h 1828 x 1200
6'w x 3'h 1828 x 900

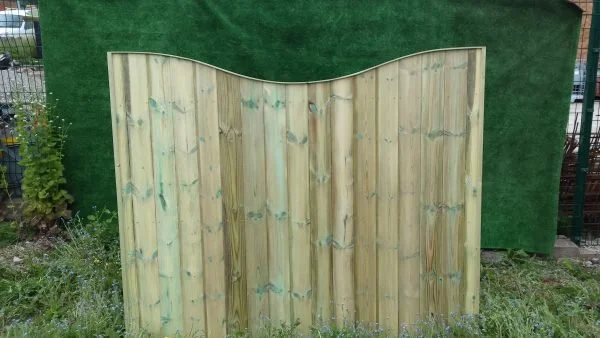

The Walnut
A sturdy and stylish bowed over design made with pressure treated green timber
Can be used with alternate Sapele panels to produce a unique wave effect
Bespoke sizes available
Specification
Cladding: 12mm V-Joint board
Finished Flexi top cap
Treatment Pressure Treated Green

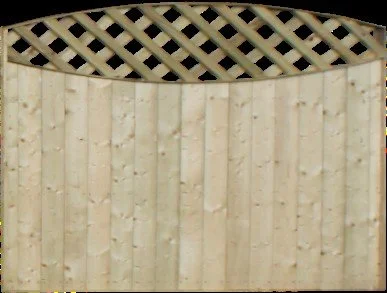

The Fern
An elegant backdrop to any garden a solid tongue and groove base combined with a Diamond Effect Trellis.
Specification
Cladding: 12mm V-Joint board
Trellis: 300mm high
Battens 45 x 19mm
Aperture Approx: 75 x 75mm (3” x 3”)
Finished Flexi top cap
Treatment Pressure Treated Green

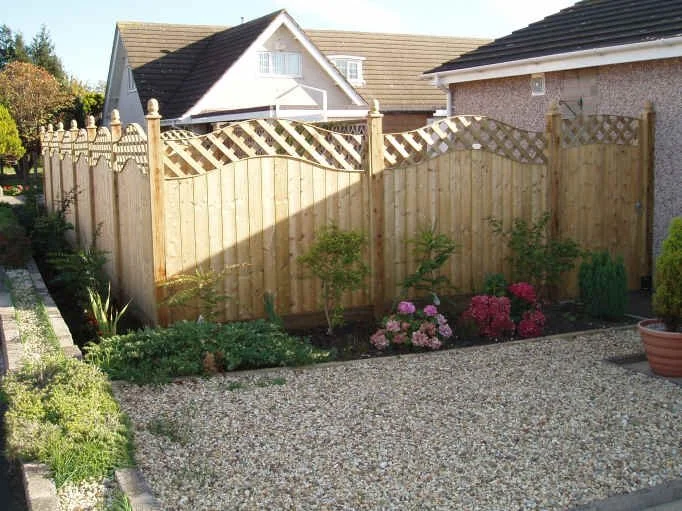

Acorn Panel
More robust that the imported version, and made right here in the UK. This panel has an added touch of style. The height is measured to the centre ( not the shoulder)Tongue and groove with a wave style trellis. Pressure treated
6'w x 6'h 1828 x 1800
6'w x 5'h 1828 x 1500
6'w x 4'h 1828 x 1200
6'w x 3'h 1828 x 900
Bespoke available.

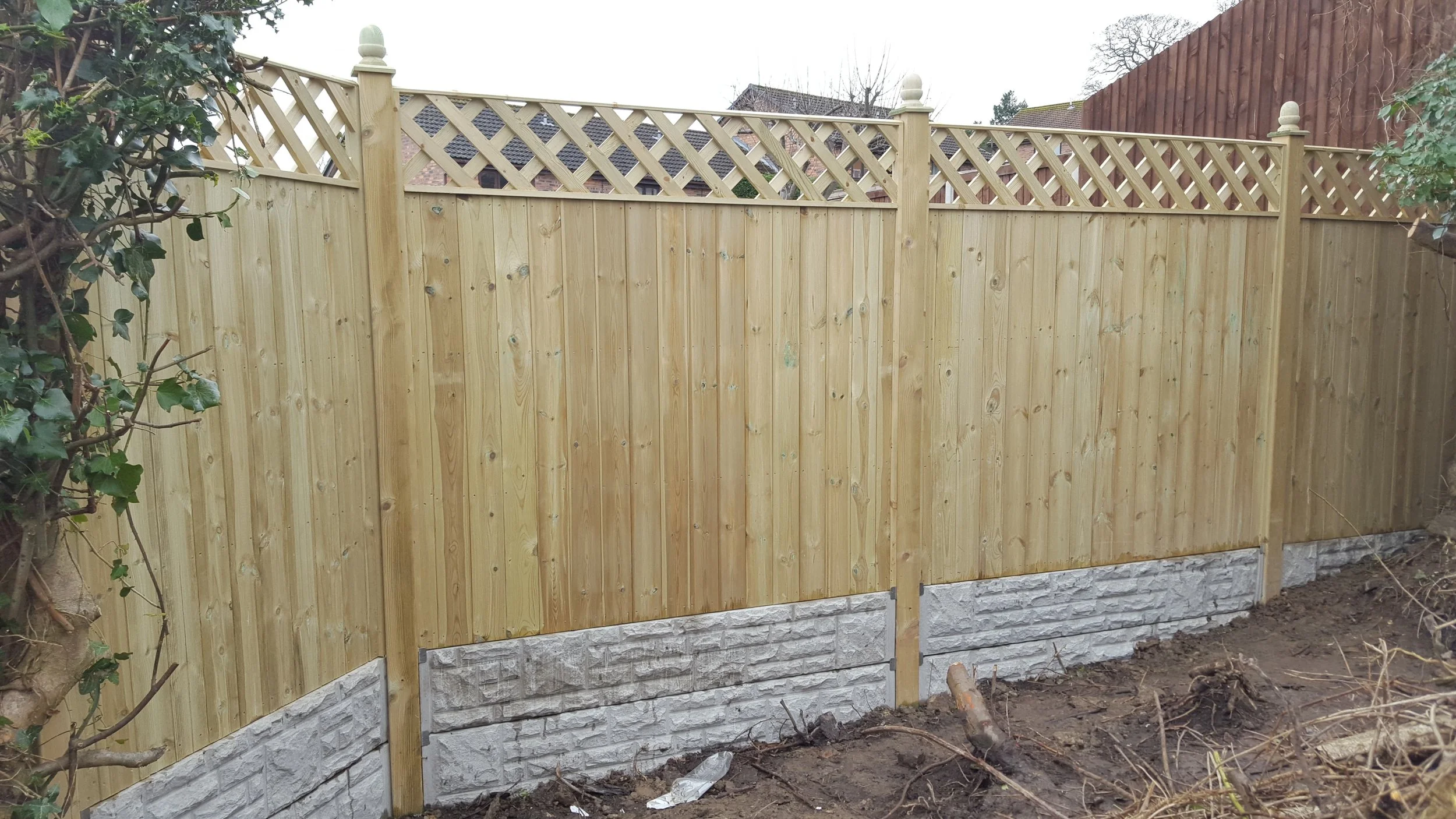

Oak Panel
An elegant backdrop to any garden a solid tongue and groove base combined with a Diamond Effect Trellis.
Specification
Cladding: 12mm V-Joint board
Trellis: 300mm high
Battens 45 x 19mm
Aperture Approx: 75 x 75mm (3” x 3”)
Finished Bevelled top cap
Treatment Pressure Treated Green

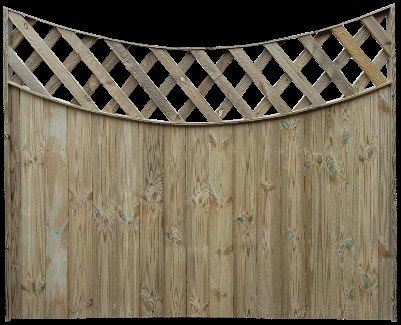

Poplar Panel
Using vertical v. jointed timber boards for the base, complimented by concave diamond trellis
Specification
Cladding: 12mm V-Joint board
Trellis: 300mm high
Battens 45 x 19mm
Aperture Approx: 75 x 75mm (3” x 3”)
Finished Flexi top cap
Treatment Pressure Treated Green

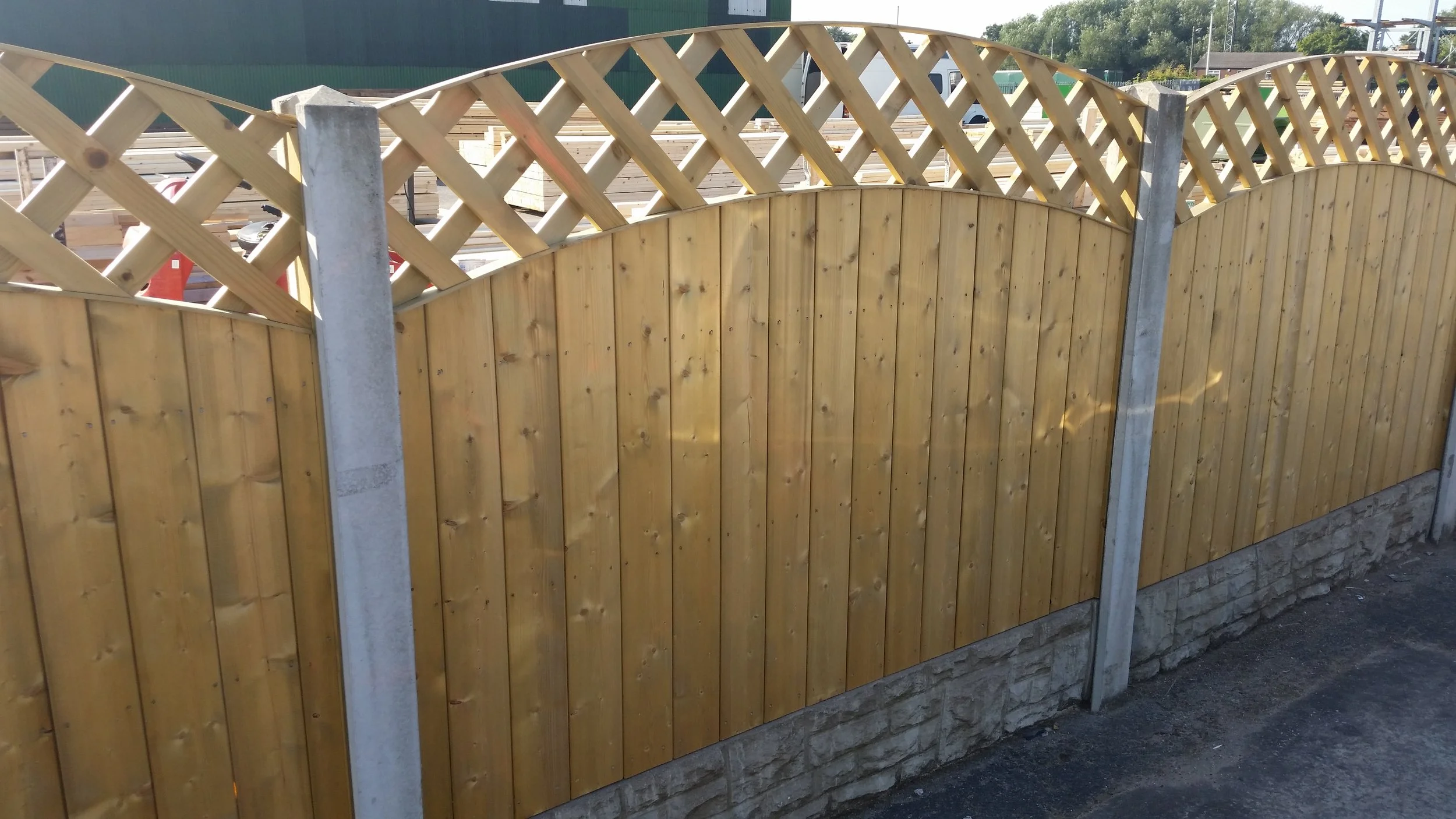

The Sycamore
As an individual panel or combined with the Poplar to create a pleasing wavy line.
Specification
Cladding: 12mm V-Joint board
Trellis: 300mm high
Battens 45 x 19mm
Aperture Approx: 75 x 75mm (3” x 3”)
Finished Flexi top cap
Treatment Pressure Treated Green
Birch Panel
A superior panel providing strength and durability.
Manufactured using planed all round (PAR), pressure-treated green Joinery Redwood Softwood timber and assembled using stainless steel nails
Cladding:12mm V-Joint board
Finished: Bevelled top cap
Pressure Treated Green
3ft, 4ft, 5ft & 6ft available to order in. bespoke sizes available on request. POA
This panel is also available with a curved or wave top.

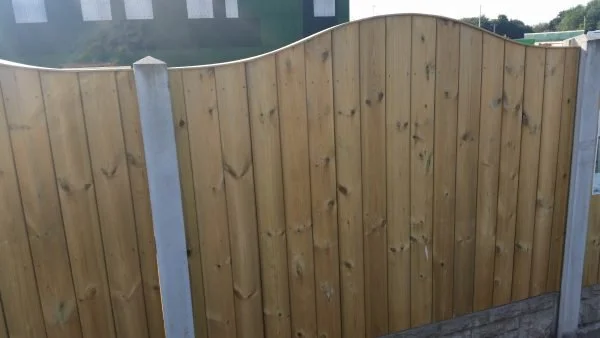

The Sapele
The Sapele is manufactured using vertical v. jointed T & G boards.
Can be used with alternate Walnut panels to produce a unique wave effect
Bespoke sizes available
Specification
Cladding: 12mm V-Joint board
Finished Flexi top cap
Treatment Pressure Treated Green

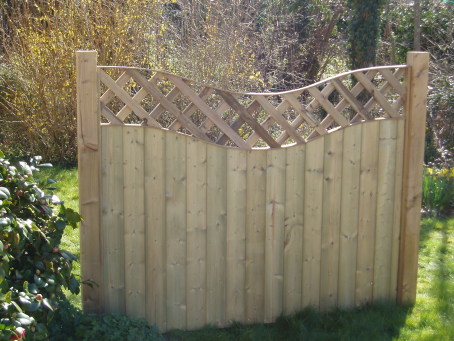

Holly Panel
The ‘Holly’ Elite panel offers an elegant backdrop to any garden.
Specification
Cladding: 12mm V-Joint board
Trellis: 300mm high
Battens 45 x 19mm
Aperture Approx: 75 x 75mm (3” x 3”)
Finished Flexi top cap
Treatment Pressure Treated Green

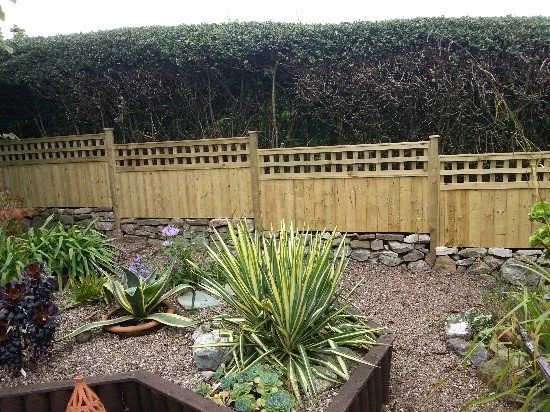

Thretford Panel
A Popular contemporary panel made with tongue and groove boards and a square trellis with top cap.
Specification
Cladding: 12mm V-Joint board
Trellis: 300mm high
Battens 45 x 19mm
Aperture Approx: 75 x 75mm (3” x 3”)
Finished Bevelled top cap
Treatment Pressure Treated Green
Matching Gates Available
Bespoke Sizes Available
Kinver Panel
Our Kinver fence Panel is made from planed redwood square edge timber and is the same both sides making it ideal for shared boundaries. Contemporary design with elegant straight lines, pleasing to the eye from either side. Stainless steel nails are used in its construction. Boards are 95 × 12mm. Pressure treated.
6'w x 6'h 1828 x 1800
6'w x 5'h 1828 x 1500
6'w x 4'h 1828 x 1200
6'w x 3'h 1828 x 900

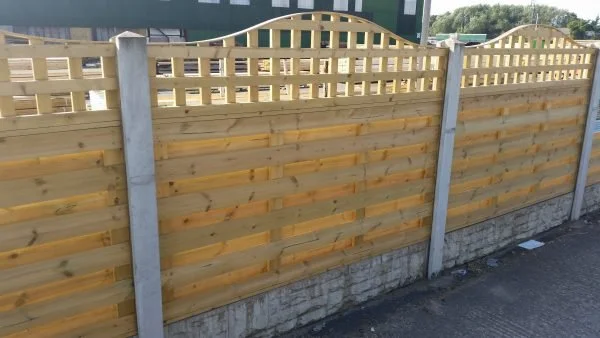

Dalemere Panel
Designed to give both aspects the same appearance combined with a square trellis.
Specification
Cladding: 95 x 12mm
Trellis 45 x 19mm battens
X 300mm high
Finished Bevelled top cap
Treatment Pressure Treated Green
The Arden
Designed to give both aspects the same appearance combined with a square trellis.
Specification
Cladding: 95 x 12mm
Trellis 45 x 19mm battens
X 300mm high
Finished Bevelled top cap
Treatment Pressure Treated Green
The Epping
Offers elegant straight lines with evenly spaced horizontal timber complimented by a decorative diamond effect trellis.
Specification
Cladding: 95 x 12mm
Trellis 45 x 19mm battens
X 300mm high
Finished Flexi top cap
Treatment Pressure Treated Green
Ashdown Panel
Contemporary design with a decorative lattice top section, pleasing to the eye from either side.
Elegant straight lines combined with a diamond effect trellis.
Cladding: 95 x 12mm
Trellis: 45 x 19mm battens x 300mm high
Bevelled top cap
Pressure Treated Green

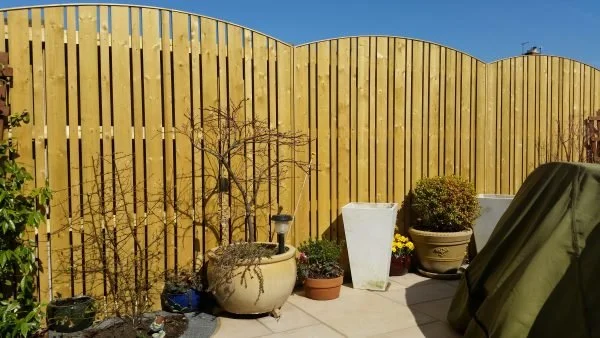

Cherry Panel
Elegant straight lines with uniformed gaps and a very modern twist with a curved top.
Vertical lines with uniformed spacing creating an obscure screen.
Specification
Cladding: 45 x 19mm
95 x 19mm
Finished Flexi top cap
Treatment Pressure Treated Green

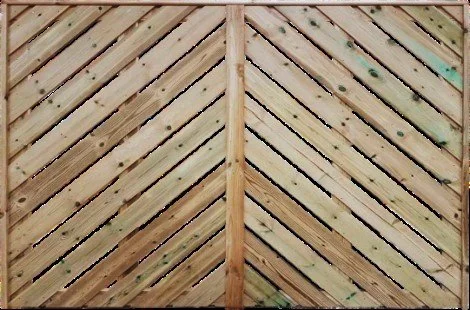

Cheveron Panel
This herringbone effect creates a stunning feature
Specification
Cladding: 95 x 12mm
Finished Bevelled top cap
Treatment Pressure Treated Green

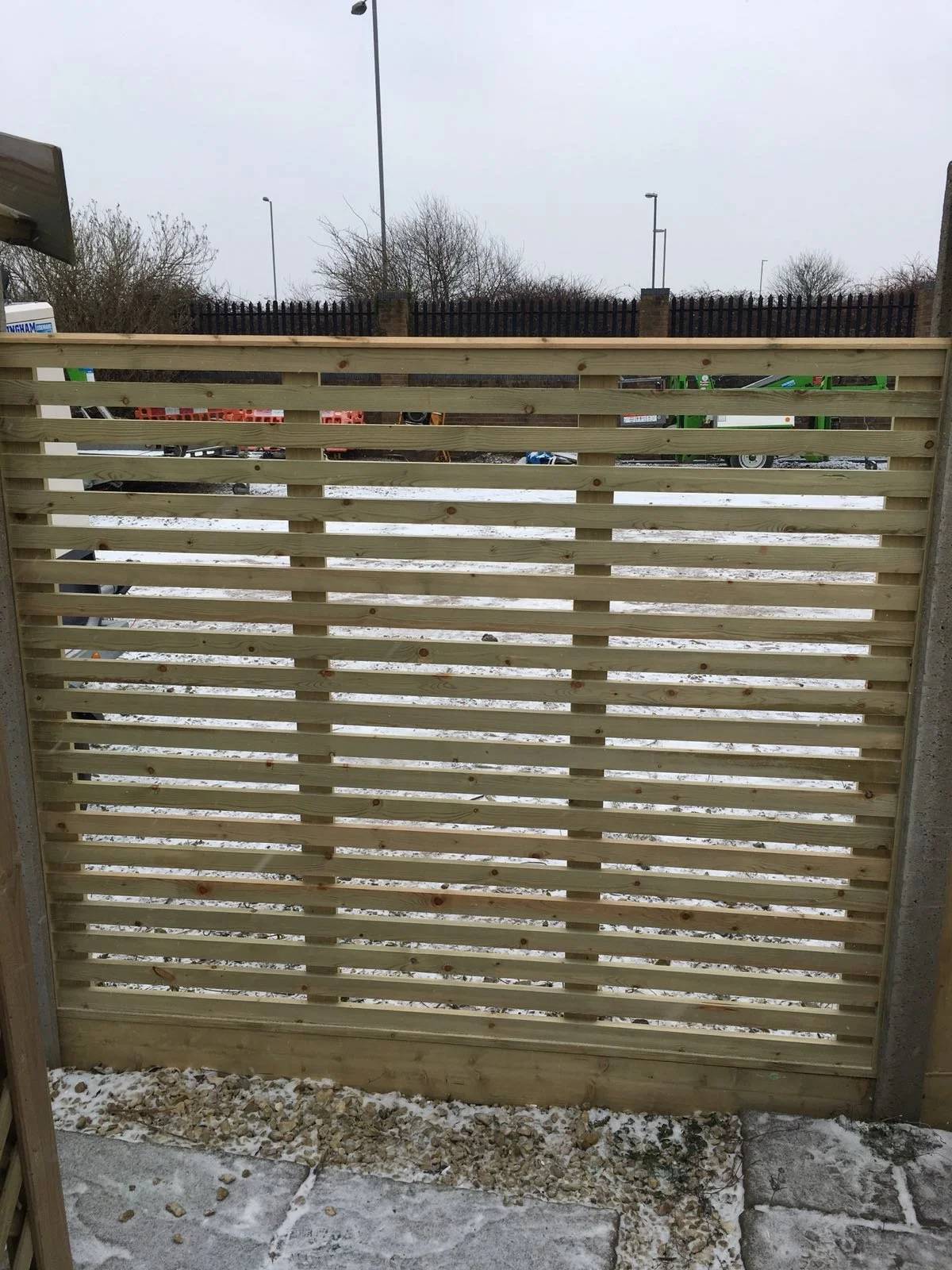

Whinfell Panel
A stylish modern contemporary looking fence panel, very sturdy stylish construction, The design allows for some wind to blow through and strands of light to come through. Can be made to any size. Made from slow grown Scandinavian redwood.
Specification
Cladding: 45x19mm
Battens 45 x 19mm
Finished Bevelled top cap
Treatment Pressure Treated Green
Crayon Fence
Aesthetically pleasing, colourful and enables children to safely enjoy playtime. Can be made to any size. POA- Lead time applies

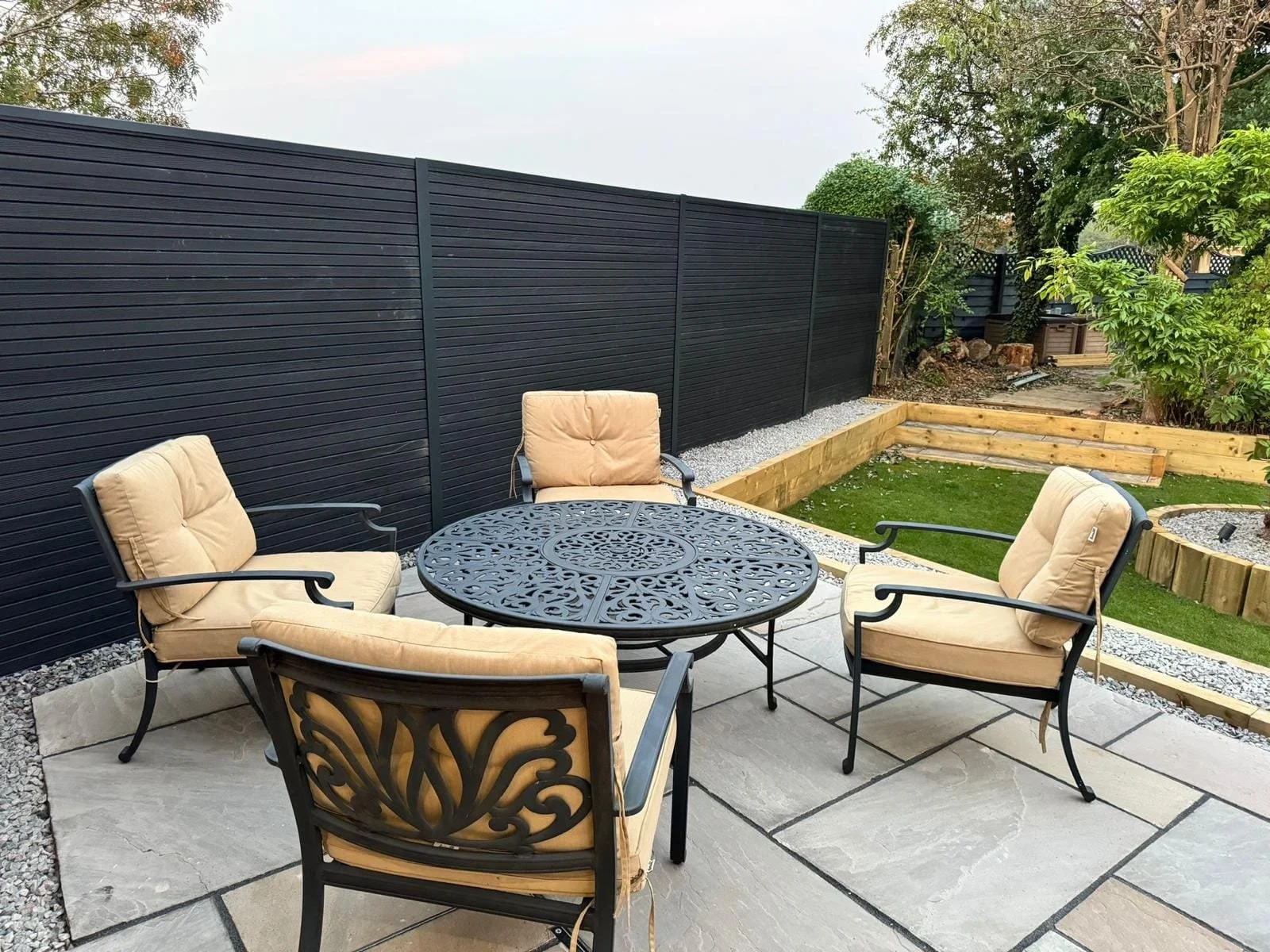

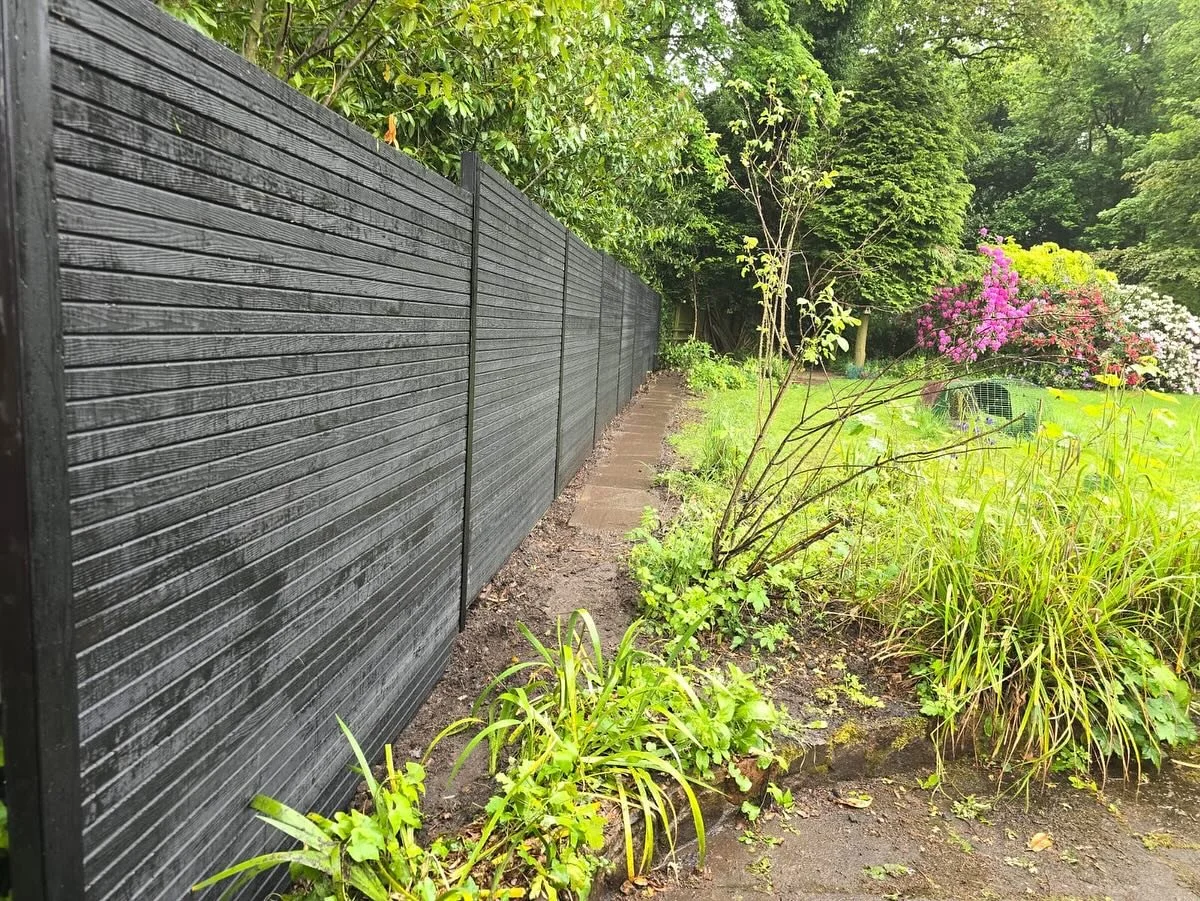

Bespoke Panels & Trellis
If you have a design in mind then we can make it for you. Bespoke styles and sizes available. We make gates to match too.
